Quick Start Guide

Header Pins

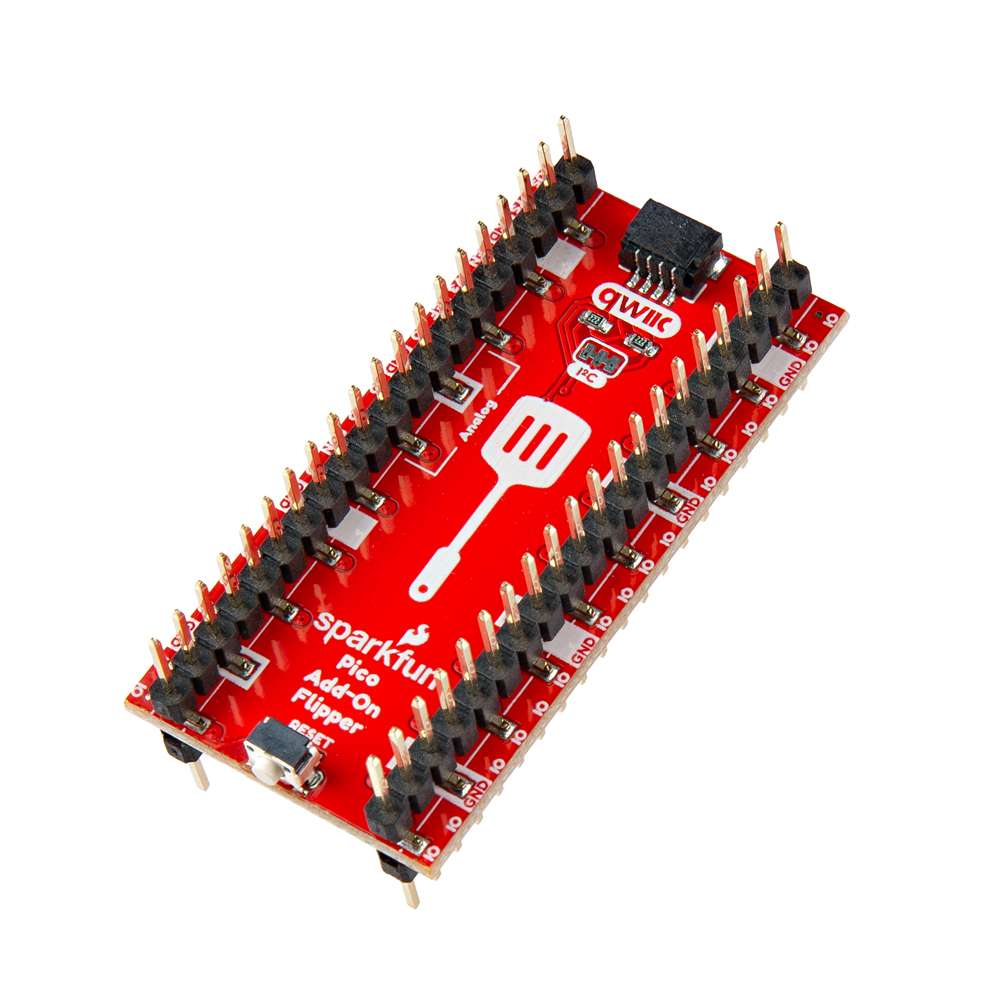

The primary function of the Pico Add-On Flipper is to flip the pin connections between its headers, on the top and bottom of the board.

Flipped pins

Pin connections between the top and bottom headers of the Pico Add-On Flipper.

Board Orientation

The Pico Add-On Flipper can be connected above any of the Raspberry Pi Pico boards, as long as the USB silkscreen or Qwiic connector aligned with the USB connector of the Raspberry Pi Pico. This specific orientation must be utilized because of the pull-up resistors on the I2C pin and the RESET button connection to the RUN pin.

Silkscreen orientation

Connector orientation

Orientation of the Pico Add-On Flipper on top of a Raspberry Pi Pico.

Flipped pins

Pin connections between the top and bottom of the Pico Add-On Flipper.

XRP Controller Board

Below, is a demonstration of the Pico Add-On Flipper being utilized with the Experiential Robotics Platform (XRP) kit.

XRP demonstration

A demo of the Pico Add-On Flipper being utilized with the XRP kit.

Pico HAT

Pico Add-On Flipper can be utilized to connect multiple Pico HATs to any of the Raspberry Pi Pico boards.

Pico HAT demonstration

A demo of the Pico Add-On Flipper being utilized with two Pico HATs.
