Hardware Assembly

Qwiic Assembly

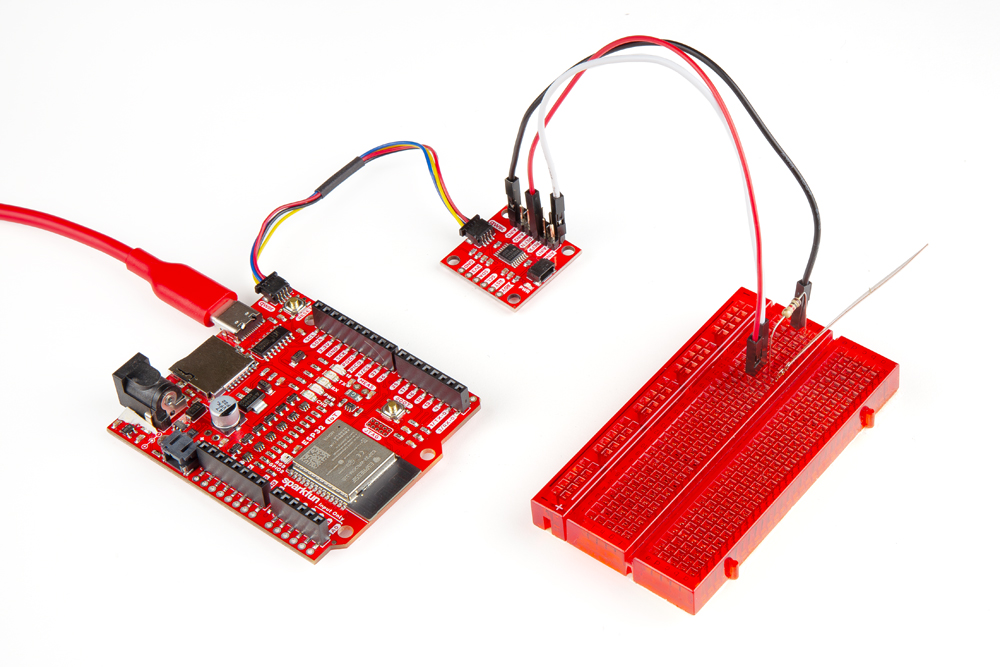

Since this is a Qwiic board, assembling it into a circuit is easy. Just connect the Qwiic ADC to a Qwiic-enabled development board using a Qwiic connector. From there, you'll obviously need some analog inputs to convert so for a quick demo we've set up a simple circuit to measure output from a flex sensor. Head back to the Quick Start Guide for instructions on how to set up the flex sensor demo circuit.
