Configuring from the display

Configuration from the Display

On devices that have an external display, pressing buttons can navigate through a limited set of menus and options.

RTK EVK

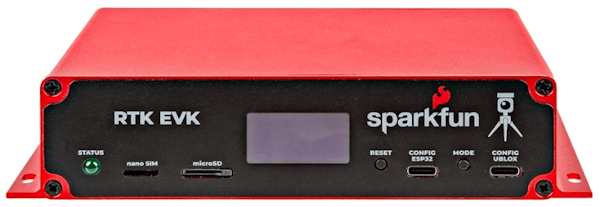

EVK front face

Front face of the RTK EVK

The RTK EVK has a 1.3" OLED with a MODE button and a recessed RESET button.

  • Pressing the button will display the configuration menu.
  • Single-tapping the button will advance the menu.
  • Double-tapping the button will select the highlighted item.
  • If there is no button press for 2 seconds, the menu will exit.
  • Pressing the reset button will immediately reset the system.

RTK Facet mosaic

Facet mosaic front face

Front face of the RTK Facet mosaic

The RTK Facet mosaic has a 0.96" OLED with a single POWER/SETUP button.

  • Pressing the button will display the configuration menu.
  • Single-tapping the button will advance the menu.
  • Double-tapping the button will select the highlighted item.
  • If there is no button press for 2 seconds, the menu will exit.

RTK Postcard

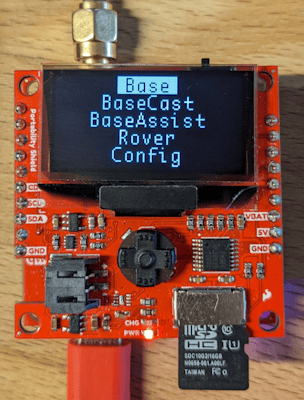

Postcard with display

Portability shield shown mounted to the RTK Postcard

The RTK Postcard comes without a display. If a user elects to add the Portability Shield, a 1.3" OLED and 5-way joystick are enabled as shown above. A Navigation Switch Cover is also shown.

  • Any press of the joystick will open the menu.
  • Pressing down or right will move forward a menu item.
  • Pressing up or left will move back a menu item.
  • Pressing in the middle of the joystick will select.
  • If there is no button press for 2 seconds, the menu will exit.
