#include <flxOptExtSerial.h>

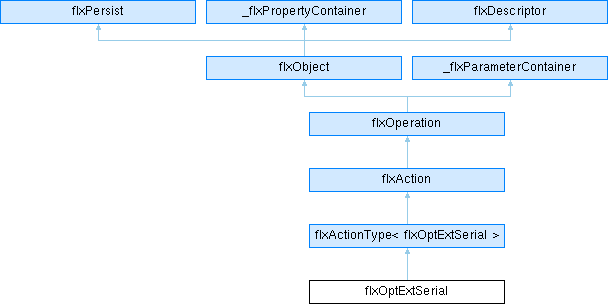

Inheritance diagram for flxOptExtSerial:

Public Member Functions
	flxOptExtSerial ()
	Default constructor for the flxDevSerial class. More...

	~flxOptExtSerial ()

	flxOptExtSerial (uint8_t pinRX, uint8_t pinTX)
	Parameterized constructor for the flxDevSerial class. More...

bool	begin (void)
	Method called to initialize the class. More...

void	reset (void)

Public Member Functions inherited from flxActionType< flxOptExtSerial >
flxTypeID	getType (void)

Public Member Functions inherited from flxAction
virtual bool	initialize (void)

Public Member Functions inherited from flxOperation
virtual flxTypeID	getType (void)

virtual bool	execute (void)
	Virtual method called to run the operation - called before data is retrieved. More...

virtual bool	onSave (flxStorageBlock *stBlk)

virtual bool	onRestore (flxStorageBlock *stBlk)

Public Member Functions inherited from flxObject
	flxObject ()

virtual	~flxObject ()

virtual size_t	n_children (void)

void	setParent (flxObject *parent)

void	setParent (flxObject &parent)

flxObject *	parent ()

void	setHidden (bool bHide=true)

bool	hidden ()

void	setIsDirty (bool bDirty=true)

bool	isDirty (void)

virtual bool	onSave (flxStorageBlock *stBlk)

virtual bool	save (flxStorage *pStorage)

virtual void	restoreComplete (void)

virtual bool	onRestore (flxStorageBlock *stBlk)

virtual bool	restore (flxStorage *pStorage)

virtual flxTypeID	getType (void)

virtual bool	save (flxStorage *)=0

virtual bool	restore (flxStorage *)=0

Public Member Functions inherited from _flxPropertyContainer
	_flxPropertyContainer ()

void	addProperty (flxProperty *newProperty)

void	addProperty (flxProperty &newProperty)

void	removeProperty (flxProperty *rmProp)

bool	containsProperty (flxProperty *prop)

void	removeProperty (flxProperty &rmProp)

flxPropertyList &	getProperties (void)

uint	nProperties (void)

bool	saveProperties (flxStorageBlock *stBlk)

bool	restoreProperties (flxStorageBlock *stBlk)

size_t	propertySaveSize ()

void	hideProperty (flxProperty &theProp)

Public Member Functions inherited from flxDescriptor
	flxDescriptor ()

void	setName (const char *new_name)
	Set the Name object - storing the pointer to the provided string No allocation is performed. If the previous name was allocated, it is freed. More...

void	setName (const char new_name, const char new_desc)
	Set the Name object and the Description for the object. Both strings are constants. More...

void	setName (char *new_name)
	Set the Name object, but makes a copy of the input string since the input is not const. If the previous name was allocated, it is freed. More...

const char *	name ()
	Return a const char pointer to the name of the object. More...

std::string	name_ (void)
	Returns a std::string of the name of the object. More...

void	setDescription (const char *new_desc)
	Set the Description object - the input value is constant and not copied. If the previous description was allocated, it is freed. More...

void	setDescription (char *new_desc)
	Set the Description object - the input value is not constant and is copied. If the previous description was allocated, it is freed. More...

const char *	description ()
	Return the constant C string pointer to the description of the object. More...

std::string	description_ (void)
	Return the description of the object as a std::string. More...

void	setTitle (const char *title)
	Set the Title object - the title is optional and is used mostly for UX or organizational purposes. The input value is constant and not copied. If the previous title was allocated, it is freed. More...

void	setTitleAlloc (char *new_title)
	Set the Title of the object , but make an explict copy of the provided string. More...

const char *	title (void)
	Return the C constant string pointer to the title of the object. More...

Public Member Functions inherited from _flxParameterContainer
void	addParameter (flxParameterIn *newParam, bool head=false)

void	addParameter (flxParameterIn &newParam, bool head=false)

void	removeParameter (flxParameterIn *rmParam)

void	removeParameter (flxParameterIn &rmParam)

size_t	nInputParameters ()

void	addParameter (flxParameterOut *newParam, bool head=false)

void	addParameter (flxParameterOut &newParam, bool head=false)

void	removeParameter (flxParameterOut *rmParam)

void	removeParameter (flxParameterOut &rmParam)

size_t	nOutputParameters ()

flxParameterOutList &	getOutputParameters (void)

flxParameterInList &	getInputParameters (void)

Public Attributes
flxPropertyRWUInt8< flxOptExtSerial, &flxOptExtSerial::get_rx_pin, &flxOptExtSerial::set_rx_pin >	rxPin

flxPropertyRWUInt8< flxOptExtSerial, &flxOptExtSerial::get_tx_pin, &flxOptExtSerial::set_tx_pin >	txPin

flxPropertyRWBool< flxOptExtSerial, &flxOptExtSerial::get_enable_serialdevice, &flxOptExtSerial::set_enable_serialdevice >	serialDeviceEnabled = {false}

flxPropertyRWUInt32< flxOptExtSerial, &flxOptExtSerial::get_baud_rate, &flxOptExtSerial::set_baud_rate >	serialBaudRate = {1200, 500000}

Additional Inherited Members
Static Public Member Functions inherited from flxActionType< flxOptExtSerial >
static flxTypeID	type (void)

Static Public Member Functions inherited from flxObject
static flxTypeID	type (void)

Protected Attributes inherited from flxDescriptor
const char *	_name

bool	_nameAlloc

const char *	_desc

bool	_descAlloc

const char *	_title

bool	_titleAlloc

Detailed Description

This class provides methods to initialize the sensor, read moisture values, and calibrate the sensor for dry and wet states. It also includes properties to enable the sensor, set the GPIO pins, and retrieve the moisture values.

Constructor & Destructor Documentation

◆ flxOptExtSerial() [1/2]

flxOptExtSerial::flxOptExtSerial ( )

Default constructor for the flxDevSerial class.

◆ ~flxOptExtSerial()

flxOptExtSerial::~flxOptExtSerial ( )

inline

◆ flxOptExtSerial() [2/2]

flxOptExtSerial::flxOptExtSerial	(	uint8_t	pinRX,
		uint8_t	pinTX
	)

inline

Parameterized constructor for the flxDevSerial class.

Parameters

pinRX	The GPIO pin connected to the RX of the serial connection
pinTX	The GPIO pin connected to the TX of the serial connection

Member Function Documentation

◆ begin()

bool flxOptExtSerial::begin ( void )

Method called to initialize the class.

Returns: True if initialization is successful, false otherwise.

◆ reset()

void flxOptExtSerial::reset ( void )

inline

Member Data Documentation

◆ rxPin

flxPropertyRWUInt8<flxOptExtSerial, &flxOptExtSerial::get_rx_pin, &flxOptExtSerial::set_rx_pin> flxOptExtSerial::rxPin

◆ serialBaudRate

flxPropertyRWUInt32<flxOptExtSerial, &flxOptExtSerial::get_baud_rate, &flxOptExtSerial::set_baud_rate> flxOptExtSerial::serialBaudRate = {1200, 500000}

◆ serialDeviceEnabled

flxPropertyRWBool<flxOptExtSerial, &flxOptExtSerial::get_enable_serialdevice, &flxOptExtSerial::set_enable_serialdevice> flxOptExtSerial::serialDeviceEnabled = {false}

◆ txPin

flxPropertyRWUInt8<flxOptExtSerial, &flxOptExtSerial::get_tx_pin, &flxOptExtSerial::set_tx_pin> flxOptExtSerial::txPin

The documentation for this class was generated from the following files:

src/opt/opt_extserial/flxOptExtSerial.h
src/opt/opt_extserial/flxOptExtSerial.cpp
